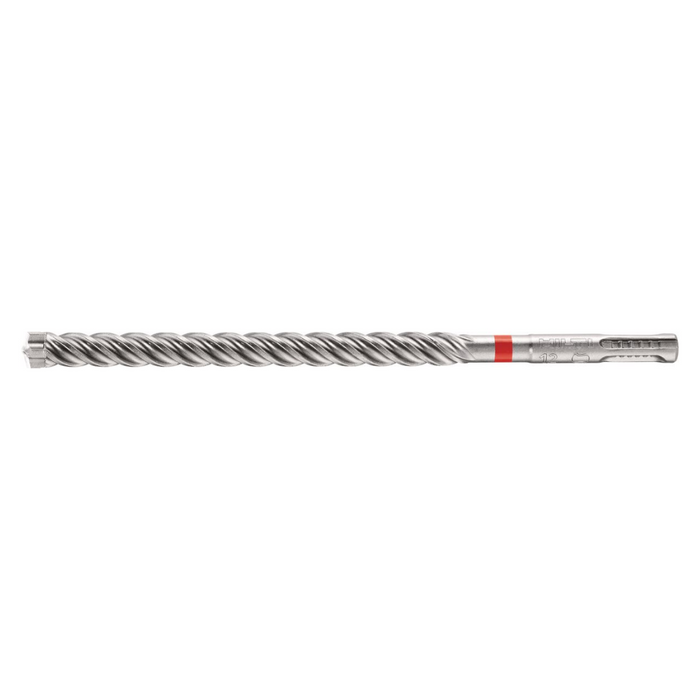

3/8" x 6" 4-Cutter SDS Drill Bit

Ultimate SDS Plus TE-CX hammer drill bit for anchor drilling into reinforced concrete.

• Connection end: SDS Plus

• Base material: Reinforced concrete, Concrete, Brick, Masonry

• Working mode: Hammer drilling, Drilling only

Features

• New solid carbide head has high wear-resistance and makes more precise holes for anchor setting – up to 30% more lifetime than other SDS Plus drill bits

• Solid carbide head featuring gradient technology – engineered to drill easily through rebar

• Quadruple helix and optimum head geometry for consistently fast drilling speed over the entire life of the drill bit

• Indicator mark – the bit is suitable for setting anchors as long as this mark is visible

• In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible

Applications

• Drilling anchor holes in reinforced and unreinforced concrete

• Drilling holes for post-installed rebar connections

Technical Data

• Connection end: SDS Plus

• Base material: Reinforced concrete, Concrete, Brick, Masonry

• Working mode: Hammer drilling, Drilling only

• Head shape: Multi Cutter

• Head material composition: Tungsten carbide

• Number of cutting edges: 4

• Diameter: 3/8 in

• Length: 6 in

• Working length: 4-1/32 in

• Product Class: Ultimate
